10 шт./лот полукруглые плоско-выпуклые светодиодные линзы 23 мм оптические линзы класса ПММА для отражателя линз

5,0

1 отзыв11 купили

Характеристики Описание

10 шт./лот полукруглые плоско-выпуклые светодиодные линзы 23 мм оптические линзы класса ПММА для отражателя линз

Название бренда

teopek

Номер модели

23MM

Происхождение

Китай

Материал

Пластик

Форма

Плоский

Назначение

Оптический

Структура

Плоско-выпуклый

Единица измерения

штука/штуки

Количество

10

399 ₽

474 ₽

-16%

Цена за 1 лот (10 штук)

17–20 июля в пункт выдачи267 ₽
20–23 июля почтой267 ₽
4 августа курьером421 ₽

Вернём деньги, если не получите заказ через 75 дней после отправки.

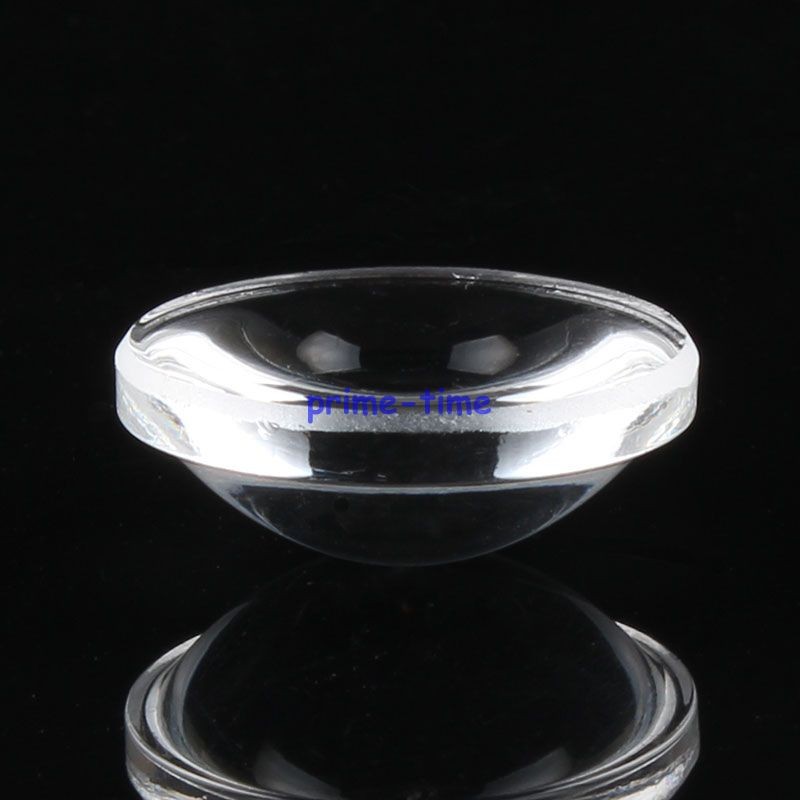

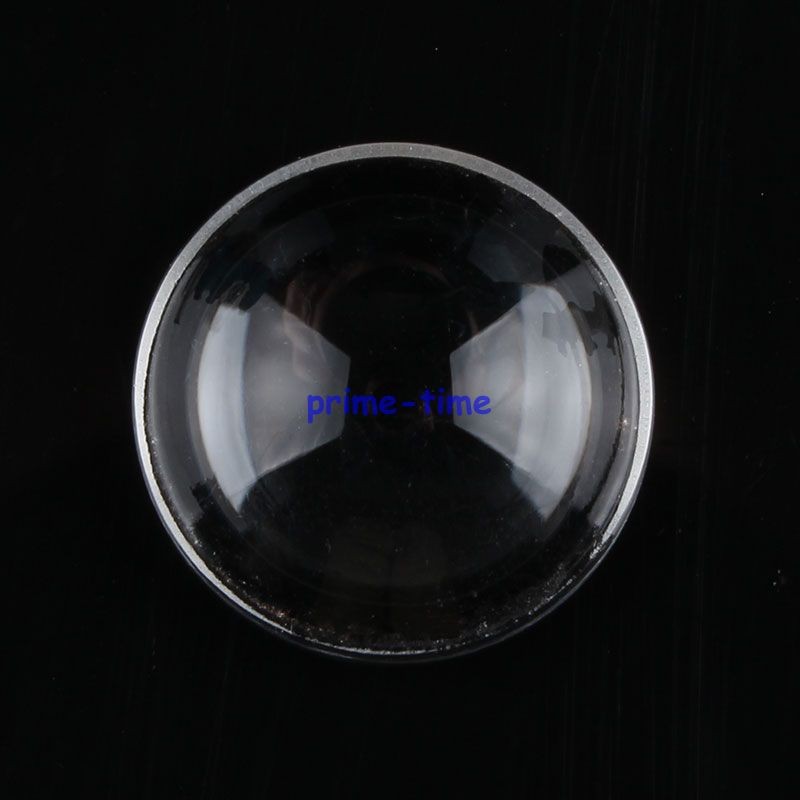

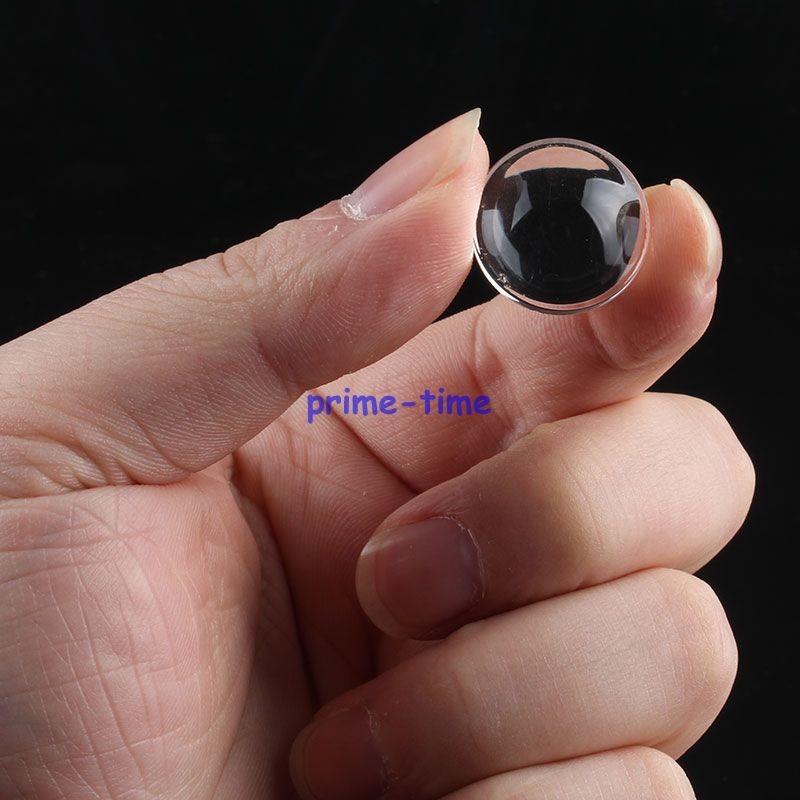

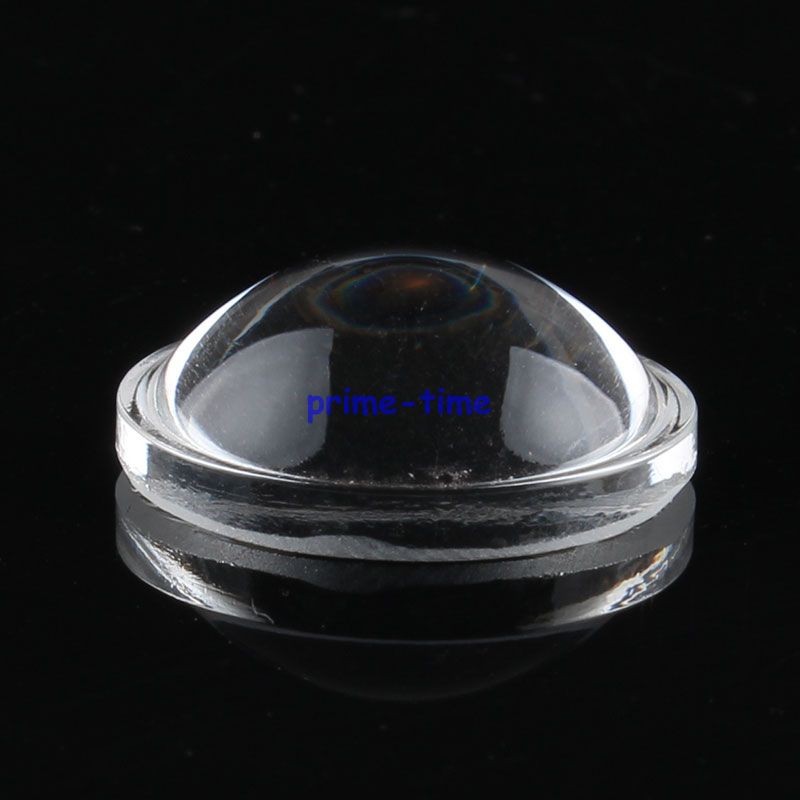

10pcs/lot semi-circle Plano-convex LED Lenses 23mm Optic Lens Grade PMMA For Lens Reflector

item picture

Diameter-18mm-High-power-LED-lens-Led-optical-glass-convex-lens

Details for the lens:

Product Name: convex lens plano-convex lens LED lens

Material: Optical Grade PMMA ( Acrylic )

Temperature: -30 to +80 degrees

Product Description: non-spherical design

Lens diameter: 23mm

The diameter of the inner circle: 21mm

Height: 8mm

Edge thickness: 1.7mm

Focal Length: 15mm (for reference only)

Beam angle of 5-90 degrees (changing the distance between the lens to the light source can be a different angle)

Light transmittance: 98%

Tolerance:+/-0.2mm

Application arrangements:

It is suitable for a variety of light sources, widely used in LED lighting, projector, instrumentation, spot lights, street lamps, etc.

According to the LED area, select the appropriate lens (The bottom area of the convex lens is greater than the LED light emitting part)

For an explanation of convex lens light Angle:

A single light emitting point after passing through the lens (by adjusting the distance between the lens and the light source) emitting angle: 5 6 7 8 ...... 70 80 85 90 degrees. example: 1W and 3W LED

A plurality of light emitting point after passing through the lens (by adjusting the distance between the lens and the light source)Beam Angle :45-90 degrees. example :10W-200W LED

Package Include:

10pcs x 23mm LED Lens
