NVSIP DVR7216Z 16ch Security DVR video Recorder with HDMI 1080P Output supports 4ch playback Audio Free Shipping
Overview:
DVR : Digital Video Recorder(just support analog camera)
NVR : Network Video Recorder(just support network camera, IPC)
HVR : High Definition&Hybrid Digital Video Recorder(DVR + NVR, Support Analog camera+ network camera)
Features:
With H.264 High efficiency Video Compression
8CH playback /2ch Audio in
Support Symbian, S60V3/V5, Windows mobile, Iphone, android , BlackBerry, mobile phone live view via 3G net
Support a 250gb-3TB HDD, with 2 USB2.0 slot, support USB, mouse, backup, burning, upgrade

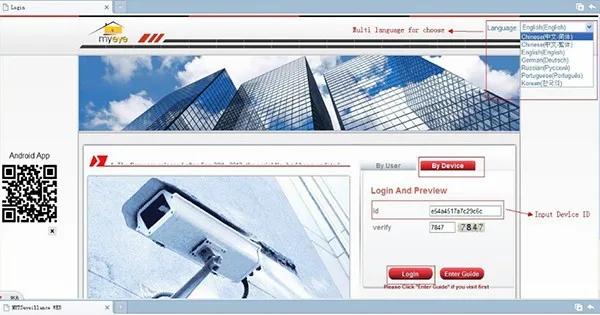

Strong Network server, support IE review and CMS(can manager over 500 units DVR)

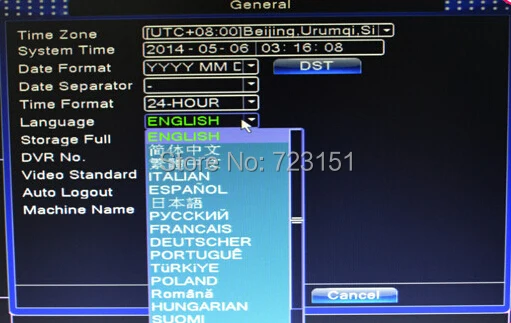

ith Chinese, Russian, English, Italian, Portuguese, Spanish, …….. , Arabic 25 language
Build-in 3322.org,dyndns.net, oray.net, myq-see.com free DDNS.
Build-in own free DDNS
With HDMI output (1920 * 1080)
With P2P Cloud function
DVR Specifications:
| Model | |
| Main Processor | Hisilicon Hi3521 chip |
| Menu display | 1/4/8/9/16screen |
| Video Standards | PAL (625 line, 50f/s); NTSC(525 line, 60 f/s) |
| Surveillance quality | PAL, D1(704×576); NTSC, D1(704×480) |
| DVR(Analog input) | 16CH CIF |
| | |
| Motion Detection | Zones:396(22*18)detection zones, many levels of Sensitivity setting |
| Recording Mode | Manual>Alarm>Dynamic Detection>Timing |
| Playback | 8CH playback |
| Search Mode | Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
| Space Occupation | CIF:5G/DAY/CH D1:20G/DAY/CH 720P:40G/DAY/CH 1080P:80G/DAY/CH |
| Video storage | Hard disk, and net |
| Backup Mode | Network burn, mobile Hard disk and USB burn, CD-DVD/RW(Option) |

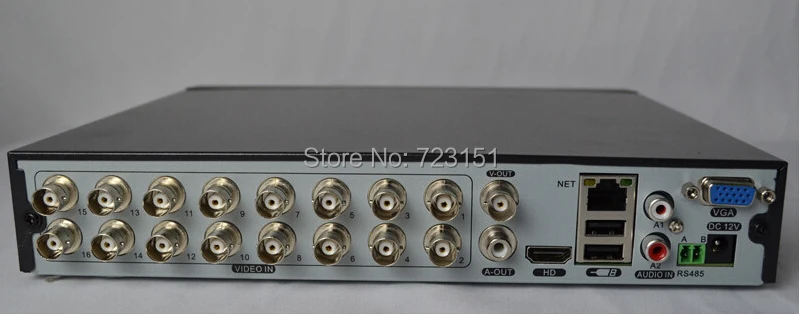

| Video Input | 16ch BNC |
| Video Output | 1ch BNC , 1ch VGA , 1ch HDMI (1920*1080) |
| Audio Input | 2CH |
| Audio Output | 1CH |
| Alarm Input | NO |
| Alarm output | NO |
| Net Interface | RJ-45 (10M/100M/1000M) |
| PTZ Control | 1 RS485 |
| USB Interface | 2 ports |
| Hard Disk | 1 SATA ports (No HDD Included) |
| Power Supply | 12V/3A |
| Dimension | 260x210x40MM(W*D*H) |
| Weight | 2KG |

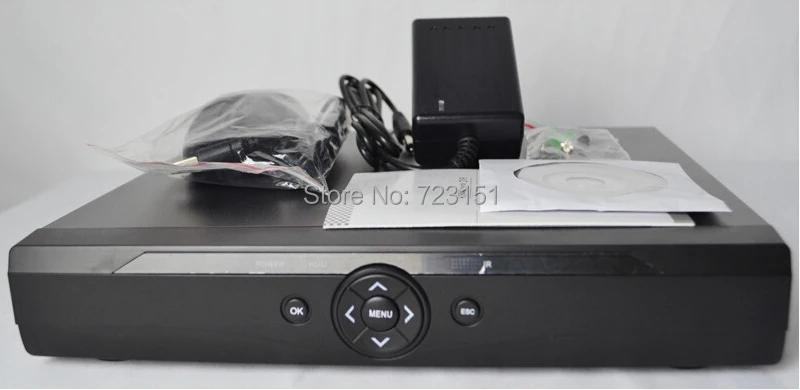

Package Included:
1x 16CH DVR
power supply
