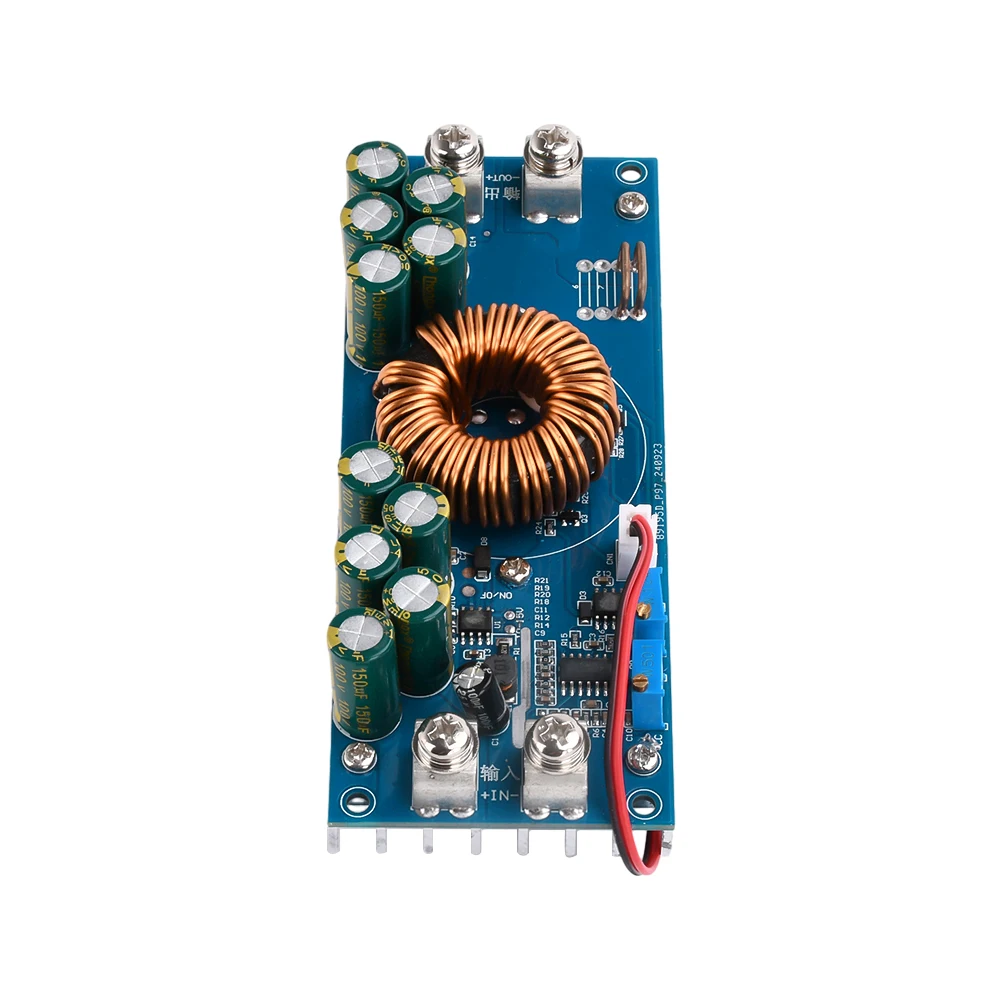

Понижающий модуль питания NoEnName_Null 800 Вт, 1200 Вт, 1500 Вт

Module nature: non-isolated buck module (BUCK)

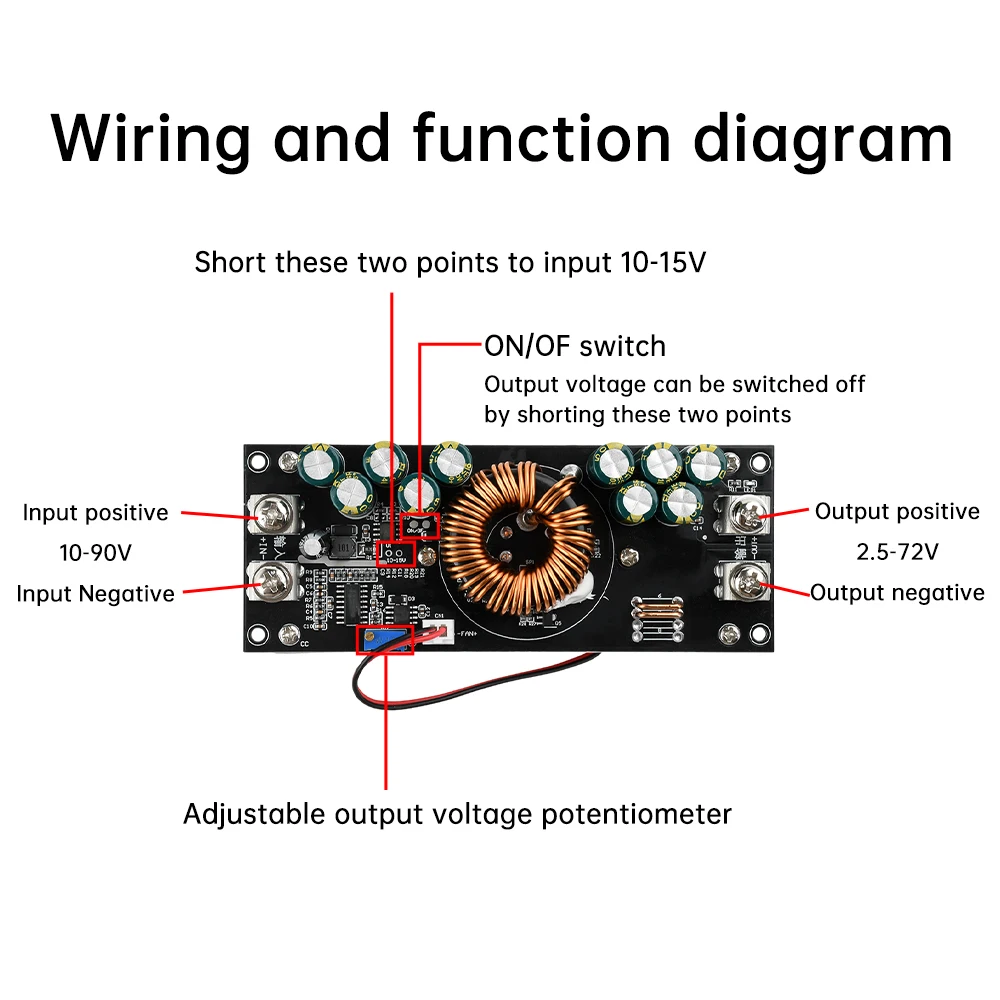

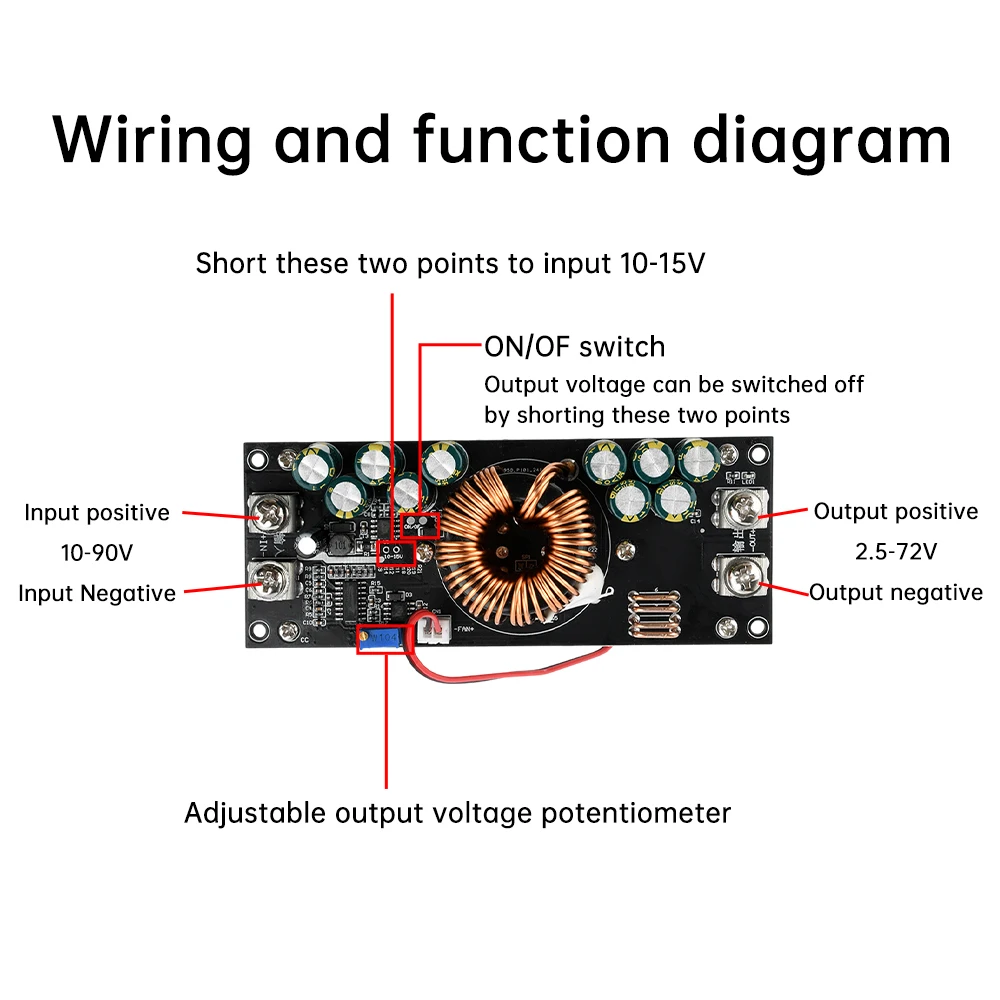

Input voltage: DC15-90V (can also input 10-15V, must be shorted "12-15V" shorted only input 10-15V, if the input 15V or more will cause damage to the module, shorted "10-15V" ON / OF failure) Output voltage: DC15-90V (can also input 10-15V, must be shorted "12-15V" shorted only input 10-15V, if the input 15V or more will cause damage to the module, shorted "10-15V" ON / OF failure) (OF failure)
Output voltage: 2.5-72V (must meet the buck conditions, IN input multiplied by 0.8 equals to the maximum output voltage)
Output minimum voltage: 2.5V
Output maximum voltage: 72V (when input 90V) input voltage * 0.8 equals output voltage
Maximum output power: 1500W (working environment must be well ventilated)
Continuous operation rated power: 1200W (ventilated environment)
Continuous rated current: 45A
Maximum output current: 50A
Heat dissipation mode: air-cooled heat dissipation
Input anti-reverse connection: No (strictly prohibit input reversal)
Input under-voltage protection: No
Input over-voltage protection: No (prohibit over-voltage)
Output ON/OF switch interface: Yes (user wiring)
Operating temperature: -10+65°C
Operating frequency: 80KHz
Conversion efficiency: up to 97% (efficiency and input and output voltage, current, differential pressure related)
Short-circuit protection: No (can limit current to 50A)
Heat dissipation: air-cooled cooling (temperature-controlled fan, open around 45 )
Output anti-reflux: No (output connected to inductive loads, such as connected to the motor must add anti-reflux diode)

Package include:
1500W step-down module * 1

Module nature: non-isolated buck module (BUCK)
Input voltage: DC15-90V (10-15V can also be input, "12-15V" must be short-circuited. Only 10-15V can be input after short-circuiting. If more than 15V is input, the module will be damaged. Short-circuiting "10-15V" ON/OFF will fail)
Output voltage: 2.5-72V (the step-down condition must be met, IN input multiplied by 0.8 equals the maximum output voltage)
Minimum output voltage: 2.5V
Maximum output voltage: 72V (when inputting 90V voltage) input voltage*0.8 equals output voltage

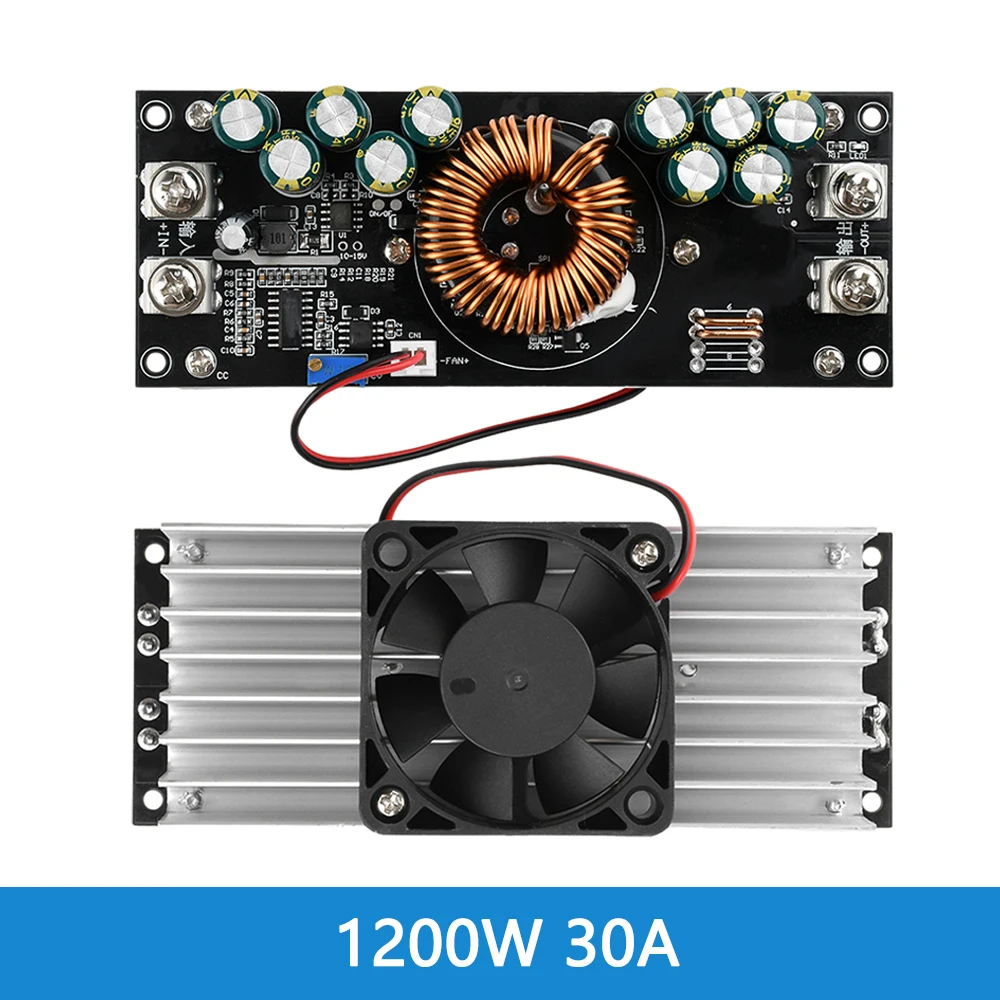

Maximum output power: 1200W (the working environment must be well ventilated, and the output voltage is above 50V)
Continuous working rated power: 1000W (in a ventilated environment)
Continuous working rated power Constant current: 25A (in ventilation environment)
Maximum output current: 30A
Cooling method: air cooling
Input reverse connection protection: no (reverse input connection is strictly prohibited)
Input undervoltage protection: no
Input overvoltage protection: no (overvoltage is prohibited)
Output ON/OF switch interface: yes (users need to wire by themselves)
Operating temperature: -10+65
Operating frequency: 80KHz
Conversion efficiency: up to 97% (efficiency is related to input and output voltage, current, and pressure difference)
Short circuit protection: no (current can be limited to 30A)
Cooling method: air cooling (temperature-controlled fan, turned on at around 45 )
Output anti-reverse injection: no (output connected to inductive load, such as connecting to motor, anti-reverse injection diode must be added)

Package list:
1200W step-down module*1
Packing list:
Power module*1

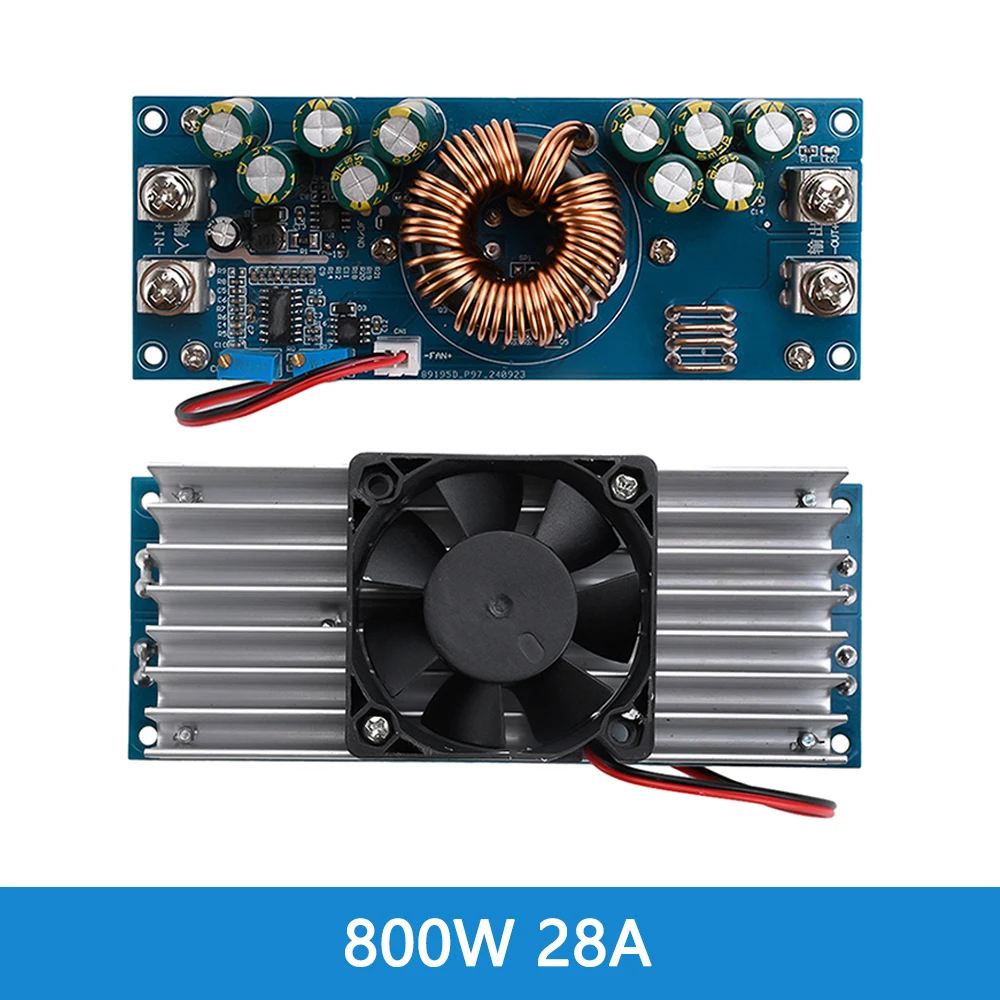

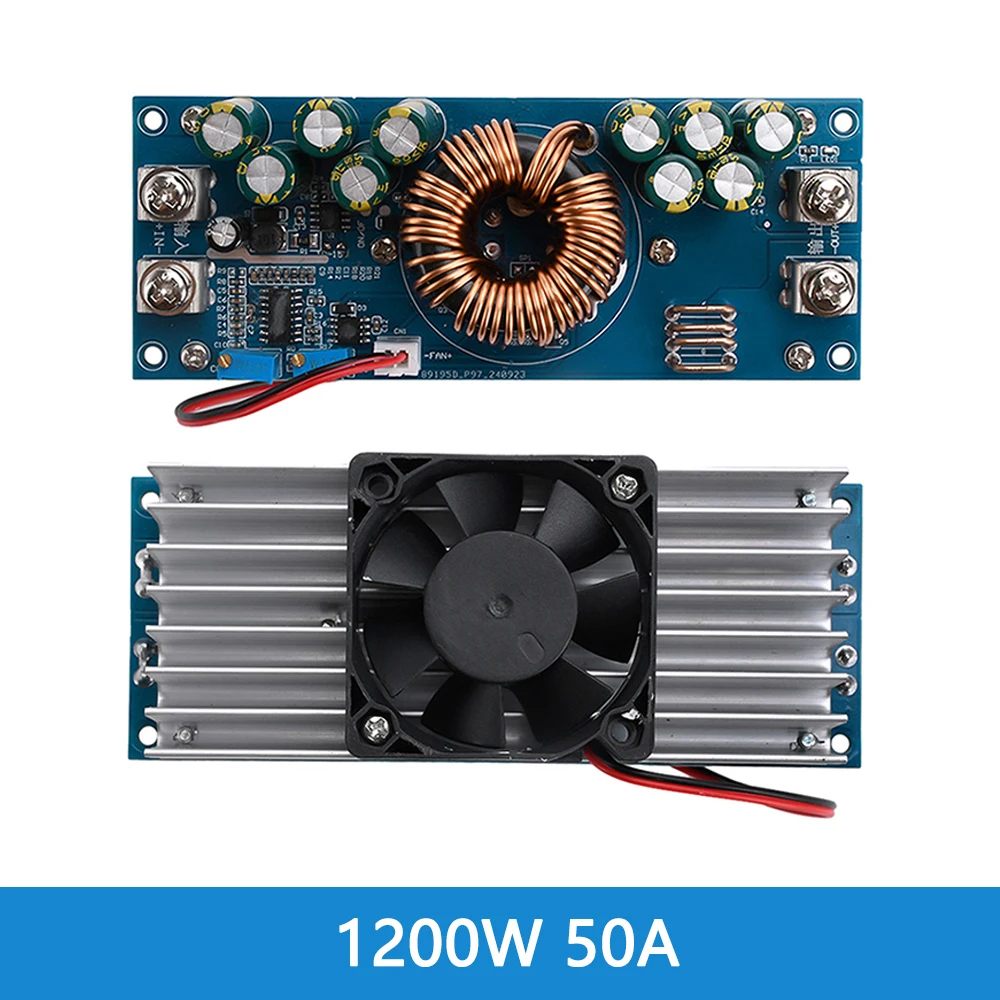

Module name: 800W step-down constant current module/1200W step-down constant current module
Module nature: non-isolated step-down module
Module nature: non-isolated step-down module (BUCK)
Input voltage: 15-90V
Output voltage range: 2.5-72V (must meet the step-down conditions, IN input multiplied by 0.8 equals the maximum output voltage)
Output minimum voltage: 2.5V
Output maximum voltage: 72V (when input voltage is 90V) Input voltage*0.8 equals output voltage (for example, if the input is 40V, 40V*0.8=32V, the maximum output voltage is 32V. Input 90V*0.8=72V)
Output constant current : 800W: 1.5-28A continuously adjustable / 1200W: 2-50A continuously adjustable
Maximum output power: 800W/1200W (the working environment must be well ventilated)
Continuous working rated power: 700W/1000W (in a ventilated environment)
Continuous working rated current: 25A/40A (in a ventilated environment)
Maximum output current: 28A/50A
Cooling method: air cooling
Input reverse connection protection: no (reverse input connection is strictly prohibited)
Input undervoltage protection: no
Input overvoltage protection: no (overvoltage is prohibited)
Working temperature: -10~+65 degrees
Operating frequency: 80KHz
Conversion efficiency: up to 97% (efficiency is related to input and output voltage, current, and pressure difference)
Short circuit protection: Yes (constant current protection)
Cooling method: air cooling (temperature-controlled fan, turned on at about 45 degrees)
Output anti-reverse feeding: No (to charge the battery, the output is connected to an inductive load, such as a motor, an anti-reverse feeding diode must be added)

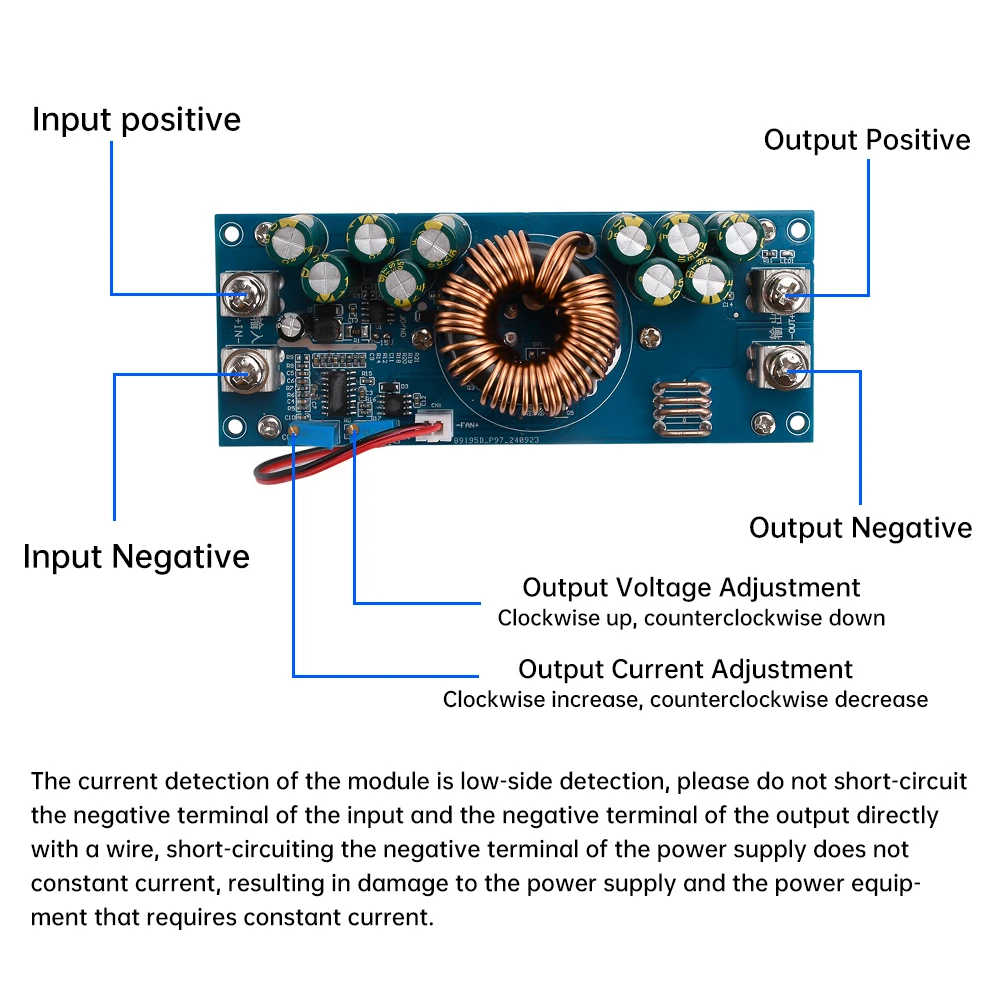

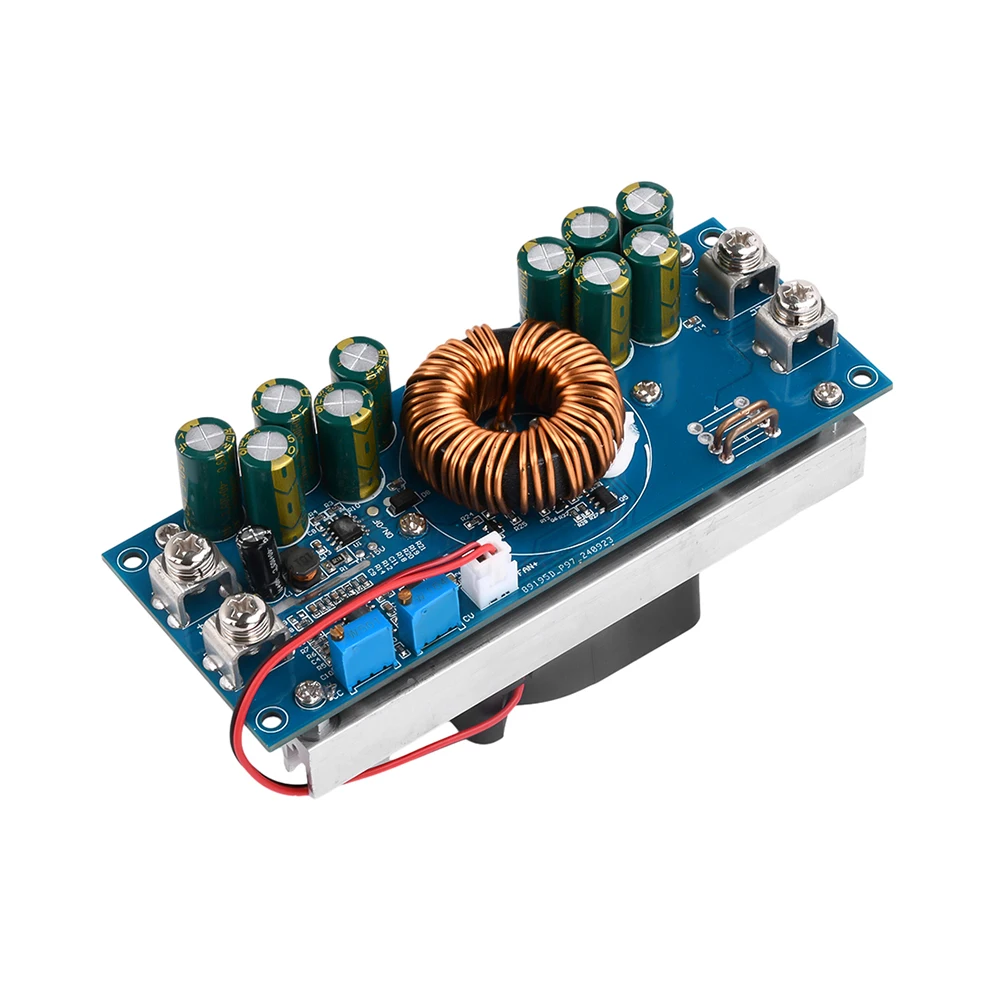

Voltage and current adjustment method: (using tools such as a multimeter and a flat-blade screwdriver)

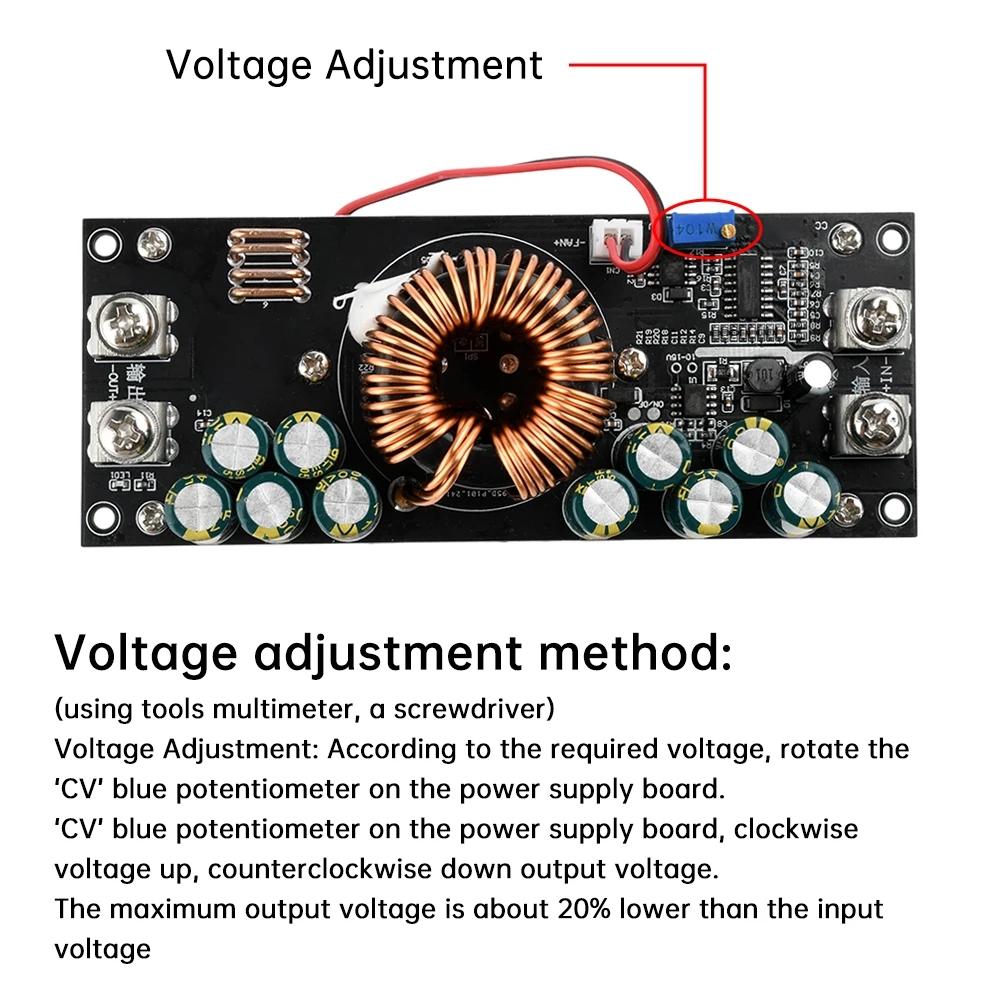

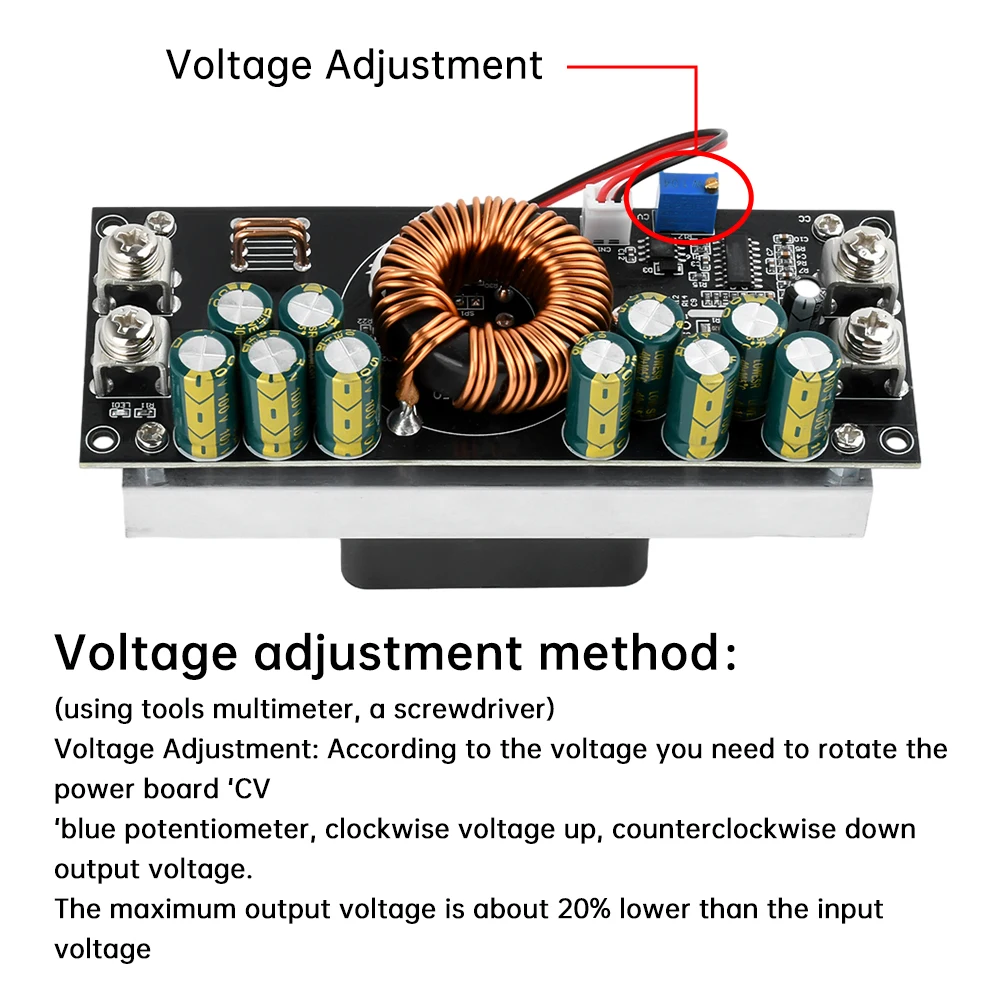

Voltage adjustment: Rotate the "CV" blue potentiometer on the power board according to the voltage you need, turn the voltage clockwise to increase, and turn the output voltage counterclockwise to decrease. The maximum output voltage is about 20% lower than the input voltage.

Output current adjustment: Set the multimeter or ammeter to 50A, 20A or 10A current gear, adjust the voltage of this power supply to 5V, turn the constant current potentiometer "CC" counterclockwise for about 10 turns, adjust the current to the minimum, use the multimeter to short-circuit the output, and then adjust the "CC" potentiometer clockwise to adjust the current to the required current value. (Note: When the constant current potentiometer "CC" turns counterclockwise for 10 turns, the power supply may have no output voltage. This is because the current is adjusted to 0A. Don't worry about it. Adjust the current clockwise to increase the current and there will be output.)

Delivery list:
High-power step-down power supply * 1 (style optional)
