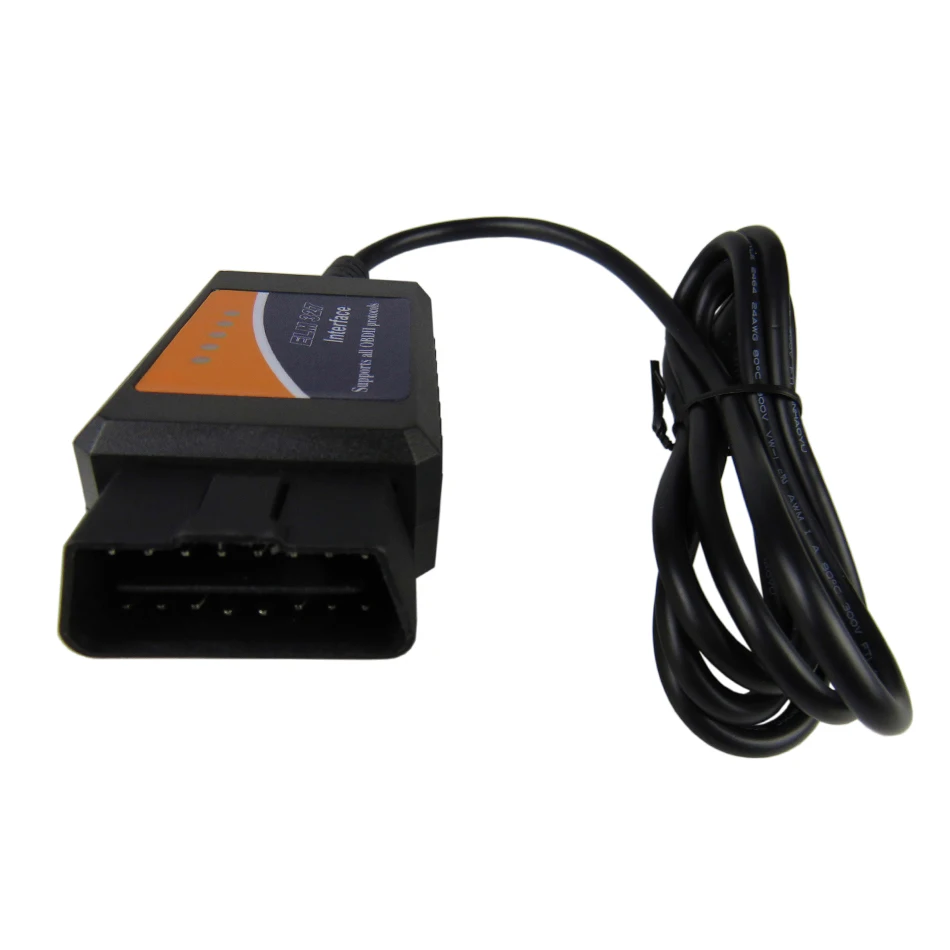

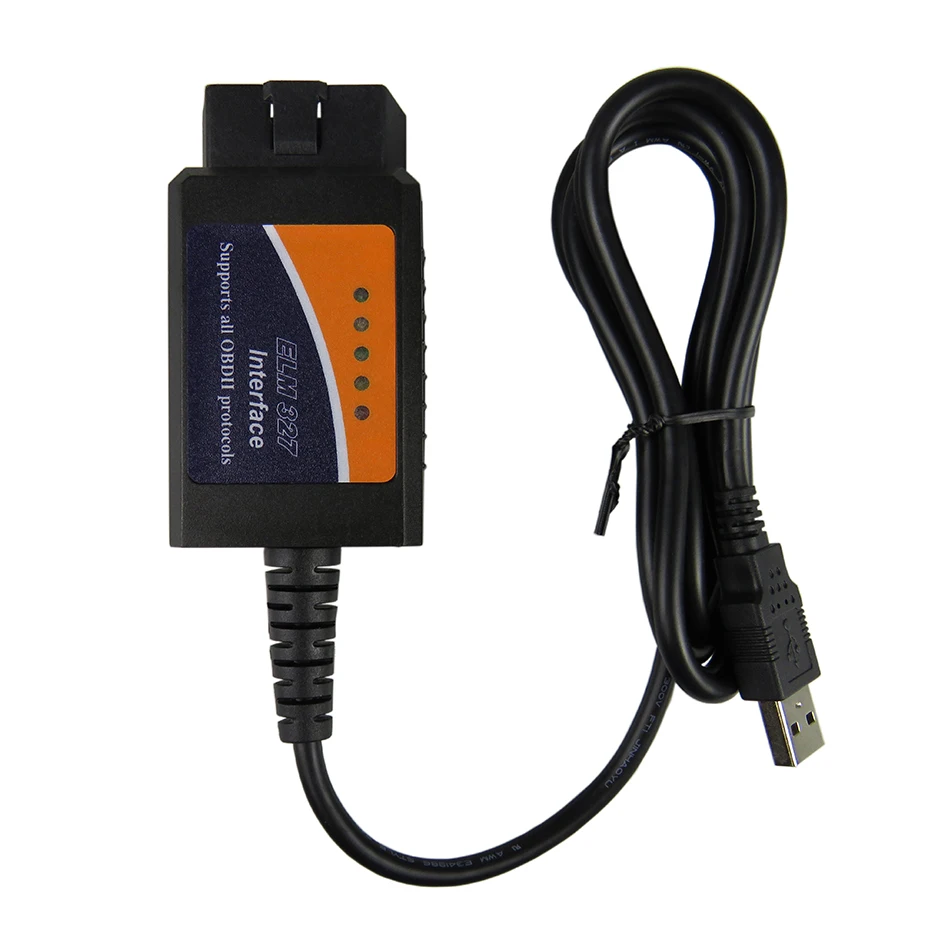

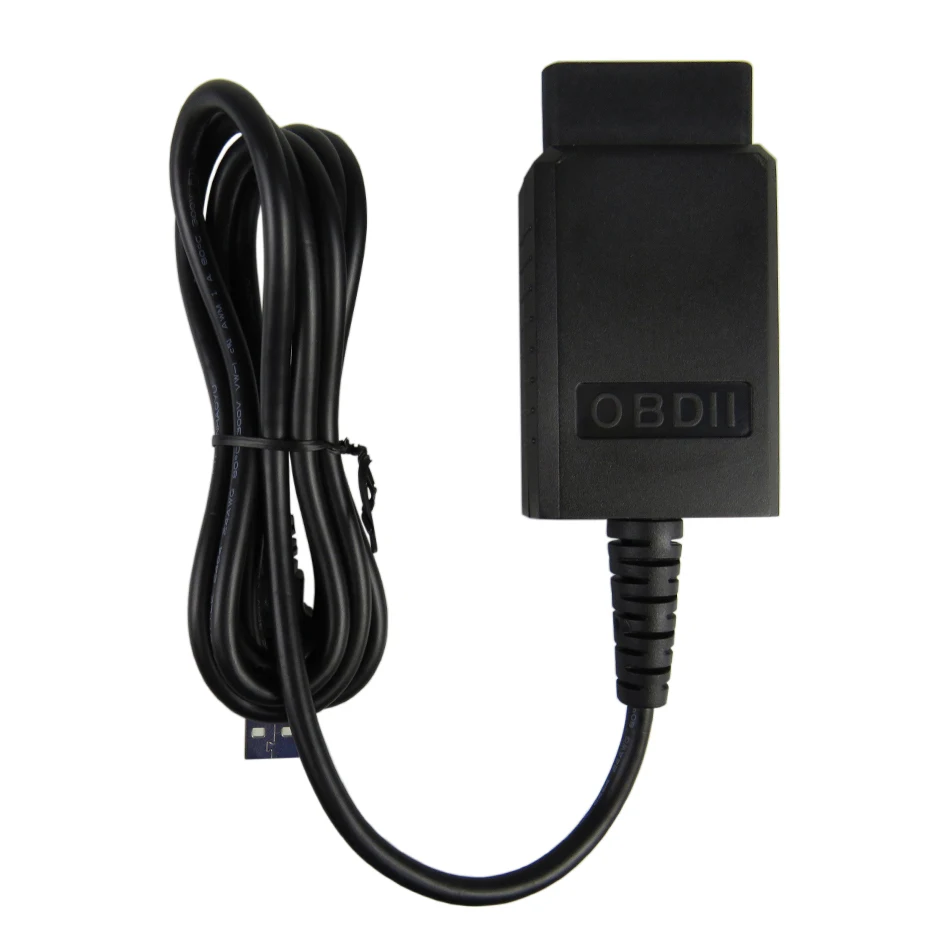

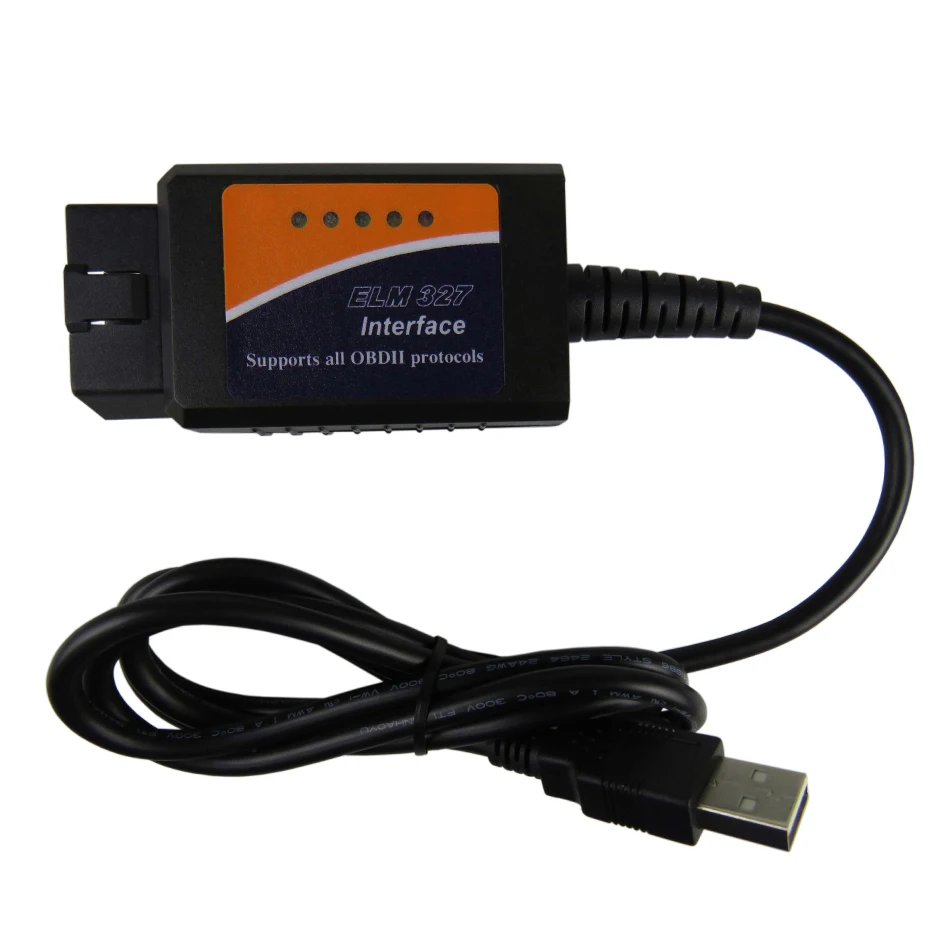

USB ELM327 OBD2 Автомобильный диагностический интерфейс Сканер ELM 327 V1.5 Считыватель кодов ELM-327 OBD 2 Автоматические диагностические инструменты Лучший чип FT232RL

Elm327 USB V1.5 Description:

(1).ELM327 is the latest PC-based scan tool. It is dispatched with a number of compatible programs. The processor is an ELM327.The output protocol (connection to laptop) is USB.

(2).Processor:ELM327.

(3).OBD-II Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.

(4).The program is very easy to install:simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.

ELM327 Scanner Software USB Plastic:

(1).Software Version:V2.1

(2).It supports all OBD-II protocols

(3).User-friendly, and easy to learn

(4).Support two platforms - DOS and Windows.

ELM327 FTDI FT232RL Chip:

(1).Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

(2).Clear trouble codes and turn off the MIL ("Check Engine" light)

(3).Display current sensor data, including:Engine RPM;Calculated Load Value;Coolant Temperature;Fuel System Status;Vehicle Speed;Short Term Fuel Trim;Long Term Fuel Trim;Intake Manifold Pressure;Timing Advance;Intake Air Temperature;Air Flow Rate;Absolute Throttle Position;Oxygen sensor voltages/associated short term fuel trims;Fuel System status;Fuel Pressure;Many others..

(4).Upcoming Function: Data graphing and logging;Freeze Frame data;Continuous and Non-Continuous Oxygen Sensor test results

Specifications:

(1).OBD-II Protocols:

ISO15765-4 (CAN);ISO14230-4 (KWP2000);ISO9141-2;

(2).Output Protocol:RS232

Baud rate:9600 or 38400

Indicator LEDs:OBD Tx/Rx, RS232 Tx/Rx, Power

Operating voltage:12V, internal protection from short circuits/overvoltages

Nominal idle current:45 mA

3.Free Software:

1.G-M Mode 22 Scan Tool by Terry

2.OBD Gauge for PalmOS and Pocket PC by Dana Peters

3.OBD Logger by Jonathan Senkerik

4.OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)

5.OBD2 Scantool by Ivan Andrewjeski

6.OBDII for ELM322 by David Huffman

7.pyOBD by Donour Sizemore for MacOSX and Linux

8.RDDTC by Pete Calinski

9.Real Scan by Brent Harris

10.ScanTest for Pocket PC by Ivan Ganev aka a-ser

11.wOBD by WDT

4.Aavailable Cars:

B-enz 2001/02/03 W203 C200K (ISO)

B-MW X5 2002 (ISO) Chevrolet Aveo (ISO)

C-itroen C3 2004 (ISO)  Daihatsu YRV 2005 (ISO)

D-aihatsu YRV Turbo 2006 (ISO)

F-iat Tipo 2002 (ISO)

F-ord New Focus 2006(CAN)

H-onda Accord 2006 JDM (ISO)H-onda Accord 2006 JDM (ISO)

H-onda Accord Euro R 2004 JDM (ISO)

H-onda City GD8 (ISO)

H-onda Civic ES 1.6A (ISO)

H-onda Integra Type R DC5 JDM (ISO)

H-onda Jazz 1.4M (ISO)

H-yundai Accent 2004 (ISO)

H-yundai Getz 1.3A 2004 (ISO)

H-yundai Getz 1.6M 2004 (ISO)

H-yundai Matrix 2004 (ISO)

H-yundai Santa Fe 2.4A (ISO)

H-yundai Sonata GLS (ISO)

H-yundai Sonata 2005 (ISO)

H-yundai Tuscani FX (ISO)

K-ia Carens 2005 (ISO)

K-ia Magentis 2005 (ISO)

K-ia Rio LS (ISO)

K-ia Sorento SUV 2005 (ISO)

L-exus es300 Mazda 2 (CAN)

M-azda 5 (CAN)

M-azda 6 (CAN)

M-azda Premacy 2001 (ISO)

M-azda RX8 (CAN)

M-itsubishi Colt 2003 (ISO)

M-itsubishi Colt Plus 2005 (ISO)

M-itsubishi Eclipse(GST-----Turbo Car can be tested for the year 1995-2000,RS/GS----1994-1996 GS all can do;Turbo Car for the year 1996-2000,only have speed and TPS,can clear the DTCS)

M-itsubishi Lancer Evolution IX 2006 (ISO)

M-itsubishi Pajero 3.5 V6 2006 (ISO)

N-issan Sunny B14 (ISO)

N-issan Sunny VIP FB15 (ISO)

N-issan X-Trail 2.0L 2004 (ISO)

N-issan X-Trail 2.5L 2004 (ISO)

P-eugeot 206 2001 Only can show RPM

P-eugeot 206 (ISO)

P-eugeot 307 (ISO)

P-eugeot 407 (ISO)

R-enault Megane II 2005 (ISO)

R-enault Kangoo 2006 (ISO)

S-ubaru Impreza 1.6TS 2002 (ISO)

S-ubaru Impreza WRX 2005 (ISO)

T-oyota Camry 2.0A 2004 (ISO)

T-oyota Camry 2.4A 2005 (ISO)

T-oyota Corolla Altis 1.6A 2005 (ISO)

T-oyota Corolla GLXi G8 1999 (ISO)T-oyota Corolla GLXi G8 1999 (ISO)

T-oyota Corolla G9 2002 (ISO)

T-oyota Vios 2004 (ISO)

5.Not Available Veichles:

M-azda 323 Protege 2003 (OBD-I)

M-itsubishi Lancer 1.6M 2006

N-issan Sunny (N16)

N-issan Cefiro (Teana) 2005N-issan Cefiro (Teana) 2005

N-issan sentra 1.8 2000/2005

N-issan Cefiro (Teana) 2005

P-roton Perdana V6P-roton Perdana V6P-roton Perdana V6P-roton Perdana V6

S-ubaru Legacy GT 2005

T-oyota camry 2002

T-oyota Wish JDM (Missing Pin 5 in DLC)

T-oyota IST JDM (Missing Pin 5 in DLC)T-oyota IST JDM (Missing Pin 5 in DLC)

T-oyota altis 1.8 2004T-oyota altis 1.8 2004

P-eugeot 206 2000P-eugeot 206 2000P-eugeot 206 2000P-eugeot 206 2000

S-uzuki Jimny 1.3 2000S-uzuki Jimny 1.3 2000S-uzuki Jimny 1.3 2000S-uzuki Jimny 1.3 2000S-uzuki Jimny 1.3 2000S-uzuki Jimny 1.3 2000S-uzuki Jimny 1.3 2000S-uzuki Jimny 1.3 2000

Elm 327 Usb Package List:Elm 327 Usb Package List:

1.One Elm327 USB obd2 diagnostic interface scanner

2.One CD software2.One CD software
