Introduction

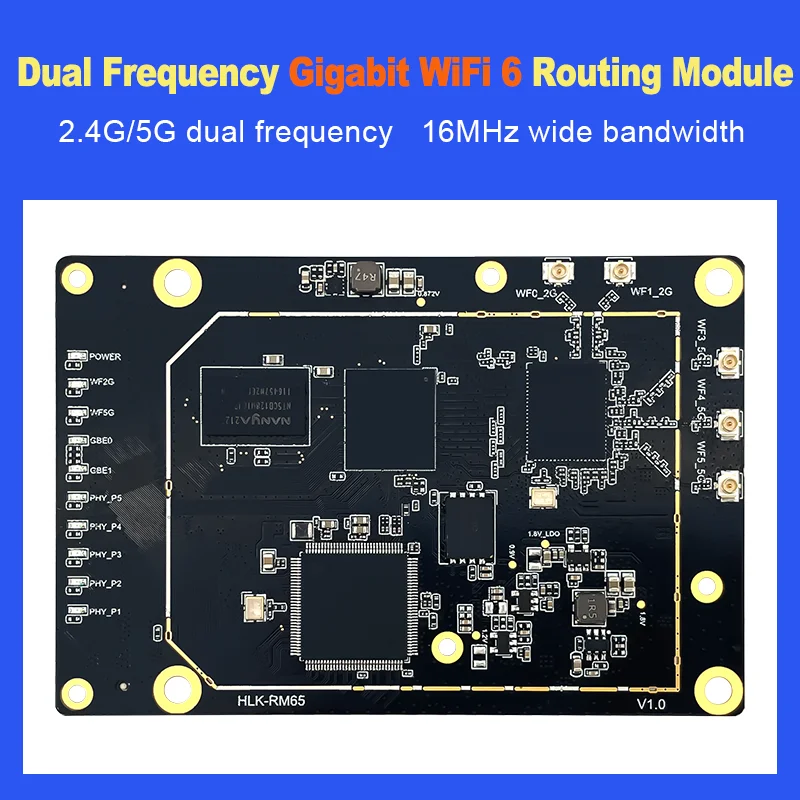

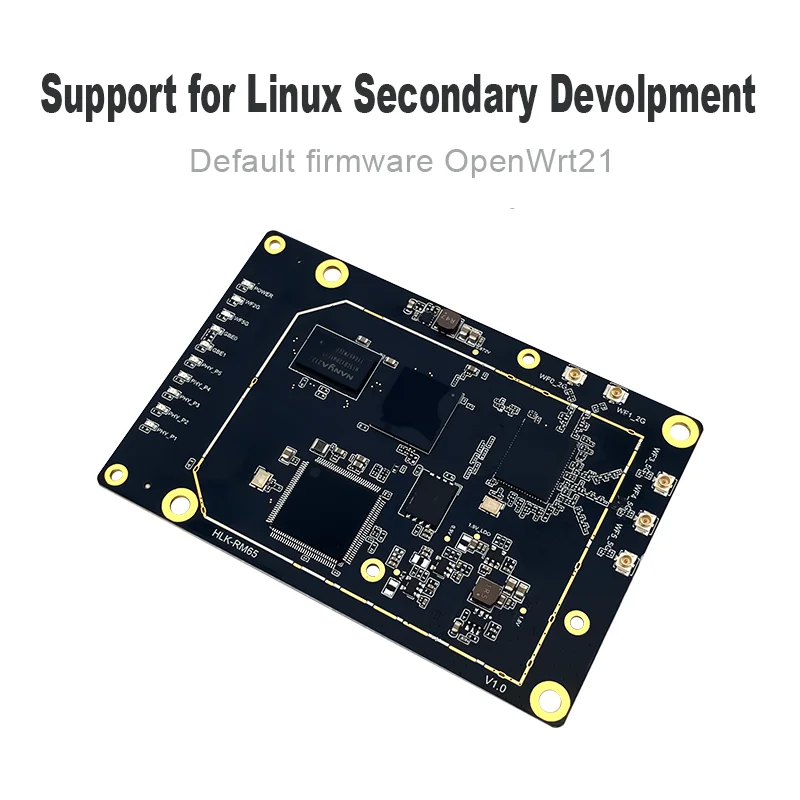

HLK-RM65 is a high performance embedded WIFI6 AX3000 module from Hi-Link Electronics, a highly integrated system-on-a-chip wireless network router module using MT7981B+MT7976C+MT7531A solution, with a theoretical maximum wireless rate of 574Mbps+2402Mbps.Used for high wireless performance, home entertainment and home automation, etc.

The SoC used is manufactured using an advanced silicon process and integrates a dual-core ARM Cortex-A53MPCoreTM operating at up to 1.3GHz and more DRAM bandwidth. A variety of peripherals are also included, including SGMII and USB3.0 (host) ports. Two 2.5Gbps HSGMII Ethernet interfaces are also implemented. The MT7981B, combined with the RF chip, provides a dual-band concurrent chipset solution for the WIFI6E AX3000 wireless router platform.

Product Characteristics

• Dual-band (2.4GHz and 5GHz) MIMO 802.11 a/b/g/n/ac/ax RF with bandwidth 20/40/80/160MHz

• Flash/DDR3 Expandable support DDR3/DDR4-2133 2GB/4GB;

• Bandwidth range: 2.4-2.4835 GHz 5.180-5.885 GHz;

• Integrated 2.4GHz/5GHz PA, LNA;

• Wireless connection: I-pex Generation 1 cradle;

• Interface WAN.LAN1.LAN2.LAN3.LAN4.LAN5.USB3.0.

• WAN access method PPPoE, Dynamic IP, Static IP, 3G/4G/5G;

• Static address assignment, virtual servers, port forwarding DMZ hosts;

• Module supply voltage: DC3.3V5A;

Module Specifications

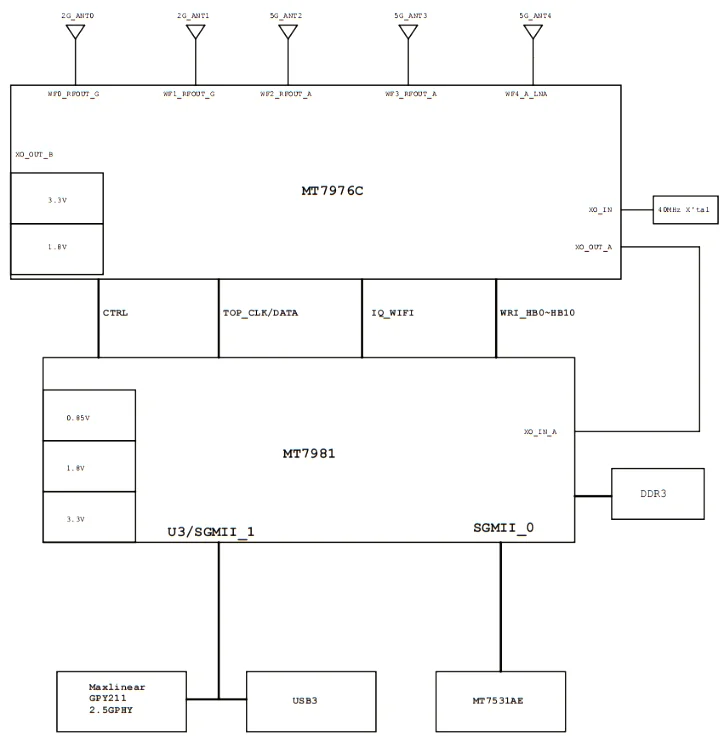

Flowchart

Application Areas

• Smart Home;

• Instrumentation;

• Wi-Fi remote monitoring/control;

• Toy field;

• Color LED control;

• Routing Gateway;

• Smart Agriculture;

• Home Routing;

• Intelligent integrated management of fire and security;

• Smart card terminals, wireless POS, handheld devices, etc.

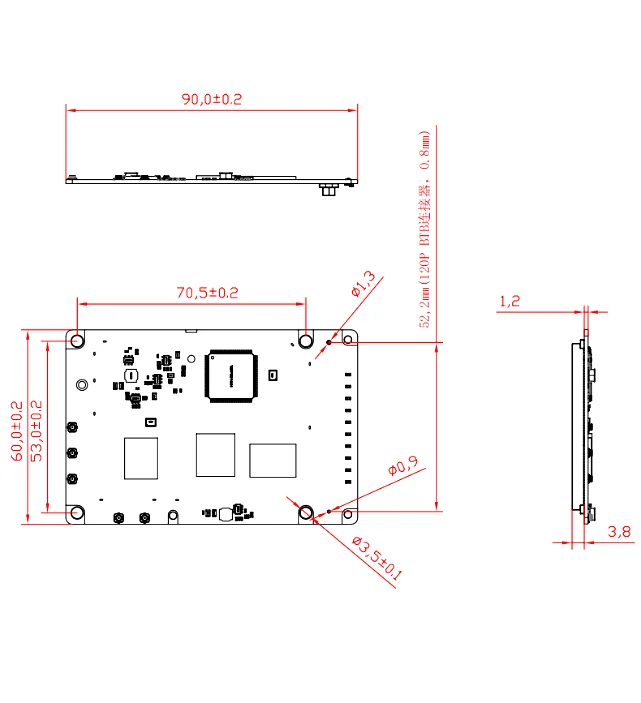

Mechanical dimensions

                                                       Single Module Size
